AUDIOCONNECTORS
CONNECTORS & RECEPTACLES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

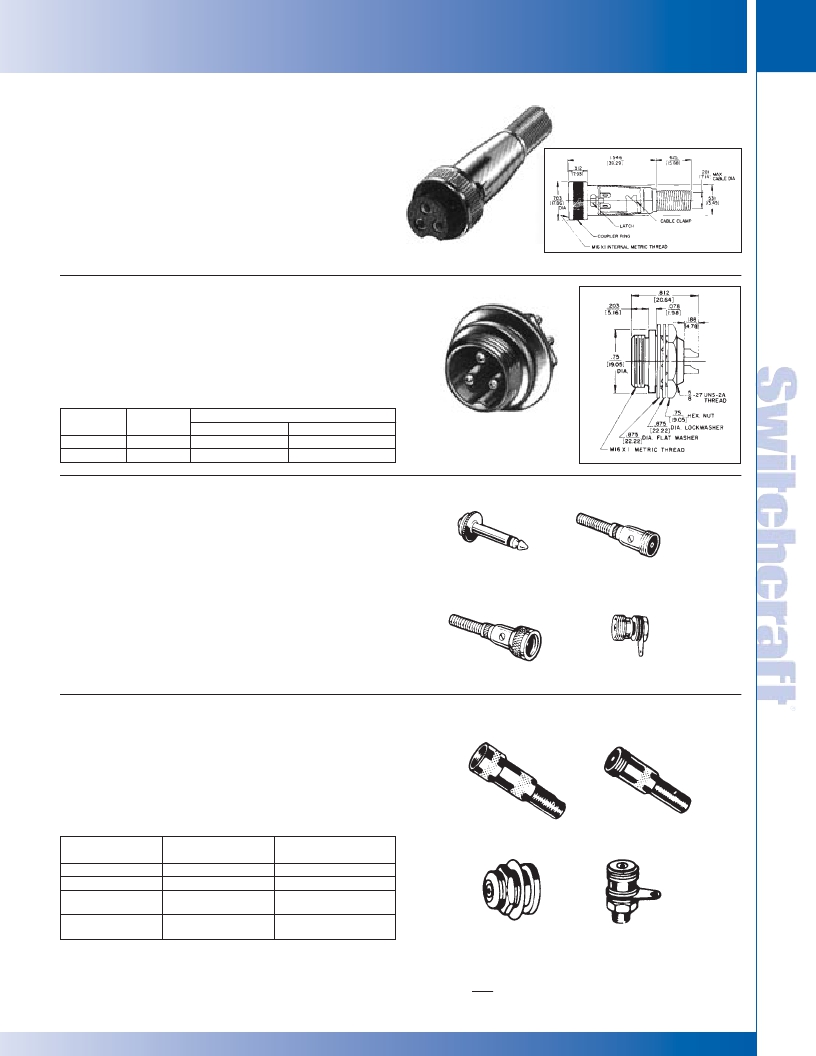

CB CONNECTORS
65
Miniature 3 and 4 circuit connectors for microphone connections in
mobile/communications equipment. Cord plug has silver-plated
copper alloy contacts, large cable clamp, and strain relief spring.
CB-3F 3-contact female cord plug. Knurled coupling ring has
internal metric M16x1 thread. Solder lug terminals accept wires
up to #18 AWG. Accommodates cables up to .281" (7.14 mm)
diameter.
CB-4F Same as CB-3F. except 4 contacts.
CB-3M 3-pin male receptacle. Housing keys insert of mating plug;
bushing with external M16x1 metric thread mates with coupling ring
on plug. Cup-type terminals accept wires up to #16 AWG. Mounts
in .64" (16.26 mm) diameter hole from front of panels up to .125"
(3.18 mm) thick, using washer and locknut supplied. Can also be
“D”-hole mounted for non-turn mounting (see drawing).
Pin diameter. is .093".
CB-4M Same as CB-3M, except 4 pin.
CB-3F
CB-3M
Insert
Dimensions, In. (mm)
Part No.
Contacts
Length
Diameter
CB3F
CB3M
3
3
1.594 (40.49) .703 (17.86)
.781 (19.84) .705 (19.05)
MICROPHONE CONNECTORS
Connectors with 5/8-27 threads are designed for use with single
conductor microphone cable with .281" (7.14 mm) maximum
outside diameter. 44 adapts 2501F to fit standard 2-conductor
phone jack. Coupling ring on 2501F is removable for fast change
from female to male type. Spring assembled into body, cable braid
and spring clamped by hollow set screws .281" (7.14 mm)
maximum cable diameter. 2501MP mounts in .390" (9.92 mm)
diameter hole.
MINI-CON MINIATURE CONNECTORS
Approximately 1/2 the size of standard microphone connectors.
Ideal for miniature lapel microphones, musical instruments and
wherever small cable is used. Accepts single-conductor shielded
cable up to .187" (4.76 mm) diameter Coupling ring on 5501F
removable for quick change of female to male type. Cable is braid
spring clamped to body by hollow point set screw.
Mounting Hole,
44
2501F
5501F
2501M
2501MP
5501M
Part Number
5501F
? 5501M
? 5501MF
Description
Female Plug
Male Plug
Receptacle
Inches (mm)
—
—
.375 (9.52)
(Front of panel)
5501MP
Receptacle
.375 (9.52)
(Front of panel)
5501MF
5501MP
? Available on special order; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
